 Post subject: Driveshaft, what to do?
PostPosted: Tue Feb 07, 2017 7:03 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
Tested my 85 model today, some issues with front brakes:

Front brake was rusted and got stuck under driving, would not return. So the hub barely survived, got smoking hot...
It appeared the previous mechanic shop had forgotten to install 4 glider plates and retraction springs, also two distance
bushings for the caliper was missing. So, in total 10 parts was missing from the previous workshop... :x
So I installed the glider plates, l had these deep down in junk-box from a previous change where I bought both the pads and clips. Removed rust, applied rust preventing oil, copper grease, sanded the brake pads slightly, and the brakes worked sweet.
Applied temporary M8 washers at caliper bolts instead of bushings. Brakes now worked sweet, no heat.

My 84 model have some issues:

Some rumbling sound. Front wheel bearing was worn so I changed it. Painful job as I forgot the spacer ring, so I had to do the job several times, without the spacer ring the bearing do not work... Also need to re-install the inner seal as I broke it. But the sound is still present, so I assume it's the
driveshafts.

What is most common, to overhaul them or to order new completely? I assume changing the shafts are very easy as you only remove the hub as with my bearings change, and simply snap them into place.

Anybody have a suggestion for a supplier for L + R side COMPLETE drive shafts? Mk1 1984 1300cm3 54kW 3 door

Alternatively, a rebuild kit? Boots, bearings, etc... but I have never done this kind of job so kinda uncertain!

Thank you for any help...

I wonder if the drive shafts from the "new" Suzuki Alto would fit, it they simply used some of the same parts from MK1?


Top
 Profile

PostPosted: Tue Feb 07, 2017 7:27 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
In order to get the correct shafts, do I need to remove them from the car and measure them?

http://www.rockauto.com/en/catalog/chev ... embly,2288

Unfortunately there are several types on the 1985 model... :huh:

Car is European 1300cm3 54kW single cam, left side drive. Can anybody help me order the 100% correct one? :oops:


Top
 Profile

PostPosted: Thu Feb 09, 2017 7:08 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
5 speed manual gearbox!


Top
 Profile

PostPosted: Fri Feb 10, 2017 5:46 am
Offline
User avatar

Joined: Tue Mar 16, 2004 6:23 am
Posts: 1708
Location: Washington, DC
In order to get the 100% correct one, you should remove the axle and walk into a store with it. In order to get the cheapest price you should order it online. There are many variations possible between those two. Your link took me to selections for a three cylinder, that would certainly not be correct. I'd be looking here:
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

EDIT: Oh no my mistake, you said 85, I read 95. That link will not work at all. I don't think there was a four cylinder in North America before 89, you're not going to have much luck shopping here.

_________________
91 Pontiac Firefly Turbo
10 Suzuki Kizashi


The smallest minority on earth is the individual. Those who deny individual rights cannot claim to be defenders of minorities.

Ayn Rand


Top
 Profile

PostPosted: Fri Feb 10, 2017 10:50 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
This is difficult.

Outer Spines: 23
Inner Spines: 22
Compressed length: 58,5cm.

Cannot find anything like this at RockAuto. Dealer said I had to pay $1100 in his system.

Wonder if I can buy a driveshaft of incorrect length, take it apart, them moving parts over to the old one?
Alternatively shortening one by welding?


Top
 Profile

PostPosted: Sat Feb 11, 2017 1:52 am
Offline
User avatar

Joined: Mon Jun 16, 2014 10:10 am
Posts: 302
Location: Palm Springs, Calif
Sorry to hear about the lousy brake job by the shop on your car. Glad you got it fixed.

In my post kindly consider 'driveshaft' to equal 'half shaft' or 'axle'.

If you are having problems with the constant velocity joints, they are a common item easily purchased in your area, including new boots for less than $15 Euros.
What I am trying to say is:
You remove the axle and rebuild it.
There are several good threads here on how to do it.
JV&S wrote one a few years back, but you would have to search to find it.
Although your MK1 axle is different in length and one has a carrier bearing, the diameters are the same as our MK1s so the new boots will interchange.

Again, the axles have metal parts which are probably still good and a boot which rips over time. You can disassemble the axle, clean it, regrease it, install new inner and outer boots.
Then you are good to go.

One MK1 owner swears by 'power steering fluid' as a dressing for the new boot prior to axle re-installation.
I have tried his suggestion and so far he is correct.

This may not be exactly like yours, but here's a video example of how one guy does it:

https://www.youtube.com/watch?v=dEu8uC8xszY


Or are you having problems with the stub axle on the passenger side?
If so, the carrier bearing can also be regreased and will give you many more years of trouble free service.

Those of you know unaware: his MK1 is a 4 cylinder (if I recall) with a typical stub axle on the right side to help avoid torque steer.
Correct me if I am wrong.
If he is talking about the passenger side, then he has this under the car:
Although I don't have pictures of the process, this axle was taken apart, new boots installed, the carrier bearing greased, and the unit painted.
It is ready for installation.

These half shafts are specific in their applications.
As has been mentioned, the 4 cylinder didn't make its way into the North American market until the 1989 year model.
The body style and suspension is different than the '84-'88 MK1, so don't expect an '89--'93 Suzuki GTi/GT axle to work.

I know how meticulous marsbar is, having read most of his threads, so him asking for a replacement axle might seem misleading.
It would be nice to see pictures of your '84 and '85 as we haven't seen these rare birds lately.

You will be rebuilding those axles.
Double check and see if the noise persists without the brake calipers attached.
It might be a sticking pad.


Top
 Profile

PostPosted: Sat Feb 11, 2017 2:18 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
Nice weather today, the rain stopped for a week, so I had a look at the car:


Front hub was removed, driveshaft removed. The most work was getting the car up on the stands and ready as they were used on a different project...

I have not removed the right one, I assume the wear is the same. Removal of this is much more time consuming as I have to loosen a bearing unit attached to the gearbox.


Inspection of the brake pad revealed the clips were missing from the last repair shop. Paid $1100 to repair the brakes last time, so forget it I am gonna do it myself this time. Also the slider clips was missing, so the brakes jammed and almost burned up. Brakes were taken apart, cleaned, clips installed and worked perfectly :D


Two of these rings were also missing, have used 2x3 M8 washers meanwhile. Seems like the workshop forgot to install them also :x


Front bearing was changed, used a pipe to force the bearing out...
Also, you need to make a jig of wood in order to hammer the hub into two parts...
Wear was significant, I was hoping this was the ratteling sound. R side also probably start to get worn, so I might order one more
to have in spare for a rainy day.

A slight warning here: Changing the bearing requires a workshop, puller, pipes, wood pieces etc.
You might want to take the hub to a workshop instead and pay them a couple of hours. Expect to use 2-3 evenings if
you haven't done it before, also I recommend getting help from a mechanic. There are also two gaskets you are likely to
destroy, these have to be pulled out from the back inside.



A special tool is needed to press the bearing out... you cannot do it without this one! Mine was a bit big, go for a smaller one to get in.
You also need to machine a piece of metal to cover the hole to have something to press against... again, you need a workshop in order to
machine tools.

Remember to install the distance ring afterwards, approx 1cm thick. I forgot and almost lost my mind...


Broke the gasket, have waited 3 weeks for it from a Suzuki Dealer. Price was more than I paid for the bearing...


Made a temporary gasket myself in order to drive the car to work, after waiting 2 weeks for the original gasket

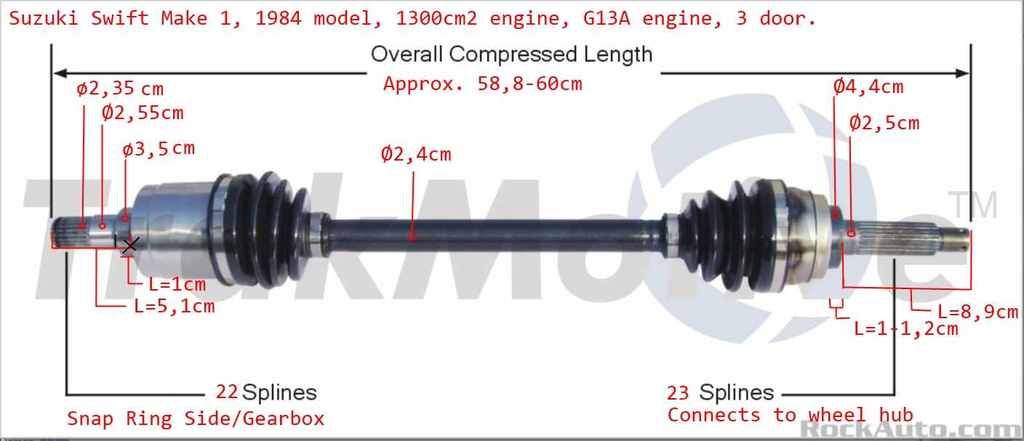

I have measured the front LEFT driveshaft. Inspections shows slight wear 0.5-1mm on upper and lower joint when I twist it.

Problem is, I cannot fint the exact match on RockAuto. One plan would be just to order a matching L and R set not considering the length, and then re-build it using the middle shaft over again. Is this possible?

I talked to a Suzuki dealer here in Norway and he wanted $1100 for a new shaft, but he had no idea about delivery time.

If I rebuild them , I want to change all components so they are like new, L and R side.

Have never done this before, so I might have to send it abroad to get it done.

But the old ones lasted 32 years, so a good repair job will last a while :)


Top
 Profile

PostPosted: Mon Feb 13, 2017 5:34 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
Okay, a bit more awake today after some sleep, and I found new drive shafts on RockAuto.com.

Found an inches to cm converter using fraction, and this time it seemed like a match:

Spines: OK both side is correct

Length: OK +/- 2mm (I cannot measure more accurately anyhow!)

Hope it fits, ordered only one pair.

Price was so low it does not make any sense to waste time overhauling the old ones for now.

if the new ones fit, I will try to overhaul the old ones later as it might take some time.

Will write up and give you a report later


Top
 Profile

PostPosted: Sun Feb 19, 2017 9:57 pm
Offline

Joined: Tue Apr 14, 2009 5:32 pm
Posts: 148
Location: Norway
Shafts arrived today. I missed the hold so I drilled one:

http://i1050.photobucket.com/albums/s40 ... 593hc9.jpg

Left side: Match, no problem.

Right side: Disaster... was stuck du to no grease at snap ring, rusted.

http://i1050.photobucket.com/albums/s40 ... qybysi.jpg

Cut open shaft with angle grinder, no other way to do it. It would not come loose. Using sledge hammer and spray it came loose.

Unfortunately, rubber crib for bearing at the male connector became damaged. I need a new one :vibe:

http://i1050.photobucket.com/albums/s40 ... ej8qkf.jpg

Left side fitted perfectly, however, the right one was ordered as a pair but was too long, measured approx. 3.5cm.

http://i1050.photobucket.com/albums/s40 ... lve19c.jpg

Matching pair should be SK-8039 RIGHT and SK-3038 LEFT for a manual gearbox... not so...!

But SK-8015 for an automatic (!) gearbox seems like I perfect match, so I ordered it... have to wait a week.

Hope the gearbox survived the wrong shaft, took a very slow test drive for 200m and a grinding sound...

SK-8039 is 58,89cm, and approx. 3.5cm too long. SK-8015 is 55,48cm too long. Difference is 3,48cm compared to the measured
3,5cm.

So it is important to measure LEFT and RIGHT before ordering. I would assume they worked as pair, but not so... :shock:

To be continued...
